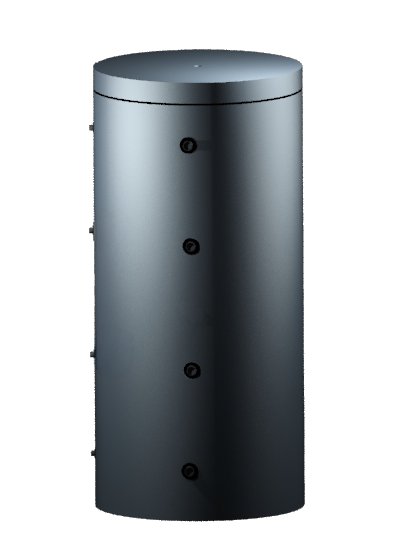

Designed for a modern heating room Fish S9 P
Water tanks
Hygiene storage
The hygienic tank with one coil is used for domestic hot water preparation and hot water buffering for space heating.
Hygienic tank: flexible corrugated tube hot water coil made of high-grade stainless steel + steel buffer tank for supplying the space heating
system.
The flow-through water heating in the large-area stainless steel corrugated tube heat exchanger makes it possible to supply hot yet always
fresh water for domestic use.
The flow-through heating ensures a sediment-free hot water flow.
The tank is equipped with an additional coil for connecting an additional heat source.
Thermal insulation
The thermal insulation of the hygienic tank consists of a layer of soft foam and a PVC foil jacket.
Technical description
- Tank material: S235 JRG
- Maximum operating pressure of the tank: 5 bar
- Maximum operating temperature of the tank: 95ºC
- Insulation: 100 mm
- Outer coat: grey
- DHW heat exchangers: corrugated pipe (stainless steel)

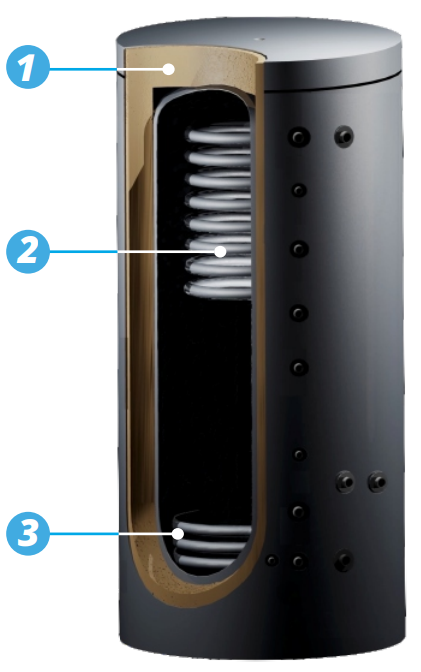

Technical Data
1- Insulation: soft foam for excellent thermal insulation
2- Efficient coil with special design for DHW
3- Efficient coil for solar installation
